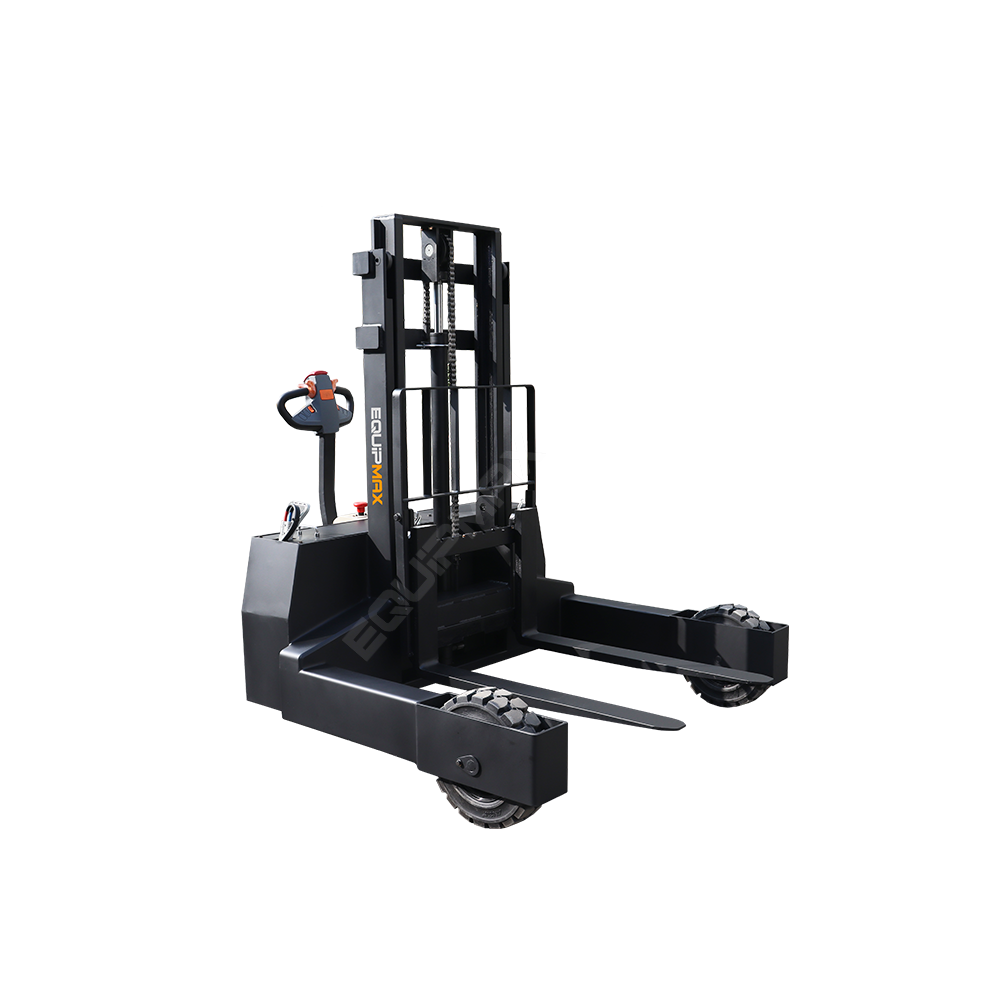

1.0-1.5T Rough Terrain Electric Stacker
-
Introduction
The Equipmax ES10-15W-RT series electric stacker is the ideal choice for the outdoor works especialy for the rough terrain working condition. It is with compacted chassis, strong power, high lifting capacity with high working efficient and very useful in the material handling and logistic transportation.Main Features
Ergonomic Design
- Equipmax adopts large injection molding covering parts, luxurious and elegant, extremely full of humanization.
- Low position center of gravity provides an excellent performance of forklift and free field of vision for the operator.Safety & Reliability
- Equipmax adopts high strength chassis with welded and formed steel plate design, protects it from impact damage and extends stacker’s lift span.
- The lowering-control valve will maintain the speed when the forks are being lowered, it prevents forks from dropping down in case of sudden damage of hydraulic failure.
- The emergency disconnector will cut off power source to avoid accident when the stacker goes out of control in special situation.
- An anti-rolling back brake installed on the stacker to keep the truck from skidding down when stacker is out of control or travelling on ramp.Environmental Protection
- The Equipmax is using high quality and environmental protection standard of USA CURTIS or Italy ZAPI controller with AC system provides the infinite variable drive and lift control. The brushless AC motors highly improved efficiency and reduce maintenance cost.
- New dynamic load-sensing hydraulic steering system improves work efficiency and energy conservation, with power consumption reduced by >8%.
- The stacker adopts more environmentally-aware design, it is totally non-asbestos and most of the components are recyclable.Easy Maintenance
- The newly developed multi-functional display has comprehensive functions and stable performance which entirely displays the stacker’s status and fault code information, it let the operator more intuitively and conveniently have a better knowledge of stacker condition.
- The easy-to-move design of back cover provides an easy and quick access to all key components for the inspection, maintenance and replacement.
- The intelligent controller system allows an easy trouble-shooting which can analyze and identify problems quickly and accurately.
- Maintenance free AC motor which makes the electric stacker higher efficiency and better performance and especially highly reduce the extra service cost.
- All components are complying with international standard of design and manufacturing which ensure a high universality and replaceability and easy to get replacement in local market.Technical Specification
1 Brand EQUIPMAX EQUIPMAX 2 Model ES10W-RT ES15W-RT 3 Power Type Battery Battery 4 Driving Type Walkie Walkie 5 Rated Load Capacity kg 1000 1500 6 Load Center mm 500 500 7 Service Weight (with battery) kg 750 785 8 Wheel Type Solid Rubber Solid Rubber 9 Load Wheel Size mm 2x Φ406×110 2x Φ406×110 10 Drive Wheel Size mm Φ300×125 Φ300×125 11 Lift Height mm 1600 1600 12 Mast Closed Height mm 2062 2062 13 Handle Height (Max) mm 1235 1235 14 Minimum Height of Fork mm 50 50 15 Overall Length mm 1720 1780 16 Overall Width mm 1575 1575 17 Fork Length mm 1070 1070 18 Fork Outside Width mm 840 840 19 Distance Between Support Legs mm 1270 1270 20 Mast Ground Clearance mm 100 100 21 Turning Radius mm 1750 1750 22 Driving Speed, Laden/Unladen km/h 3.5/4.5 3.5/4.5 23 Lifting Speed, Laden/Unladen mm/s 13/25 13/25 24 Max Gradeability,Laden/Unladen %(tanθ ) 5/10 5/10 25 Braking Method Electromagnetic Electromagnetic 26 Drive Motor kw DC 1.2 DC 1.5 27 Lift Motor kw 2 2 28 Battery, Voltage/Capacity V/Ah 24/70 24/70 29 Charger V/A 24/10 24/10 30 Noise Level dB 70 70 Equipmax retains the right to adjust the specification and configurations to improve the performance without notice, please contact us at info@equipmax-industries.com to get the newest information.
